Trima
Compact Technology
Compact Design, Superior Performance

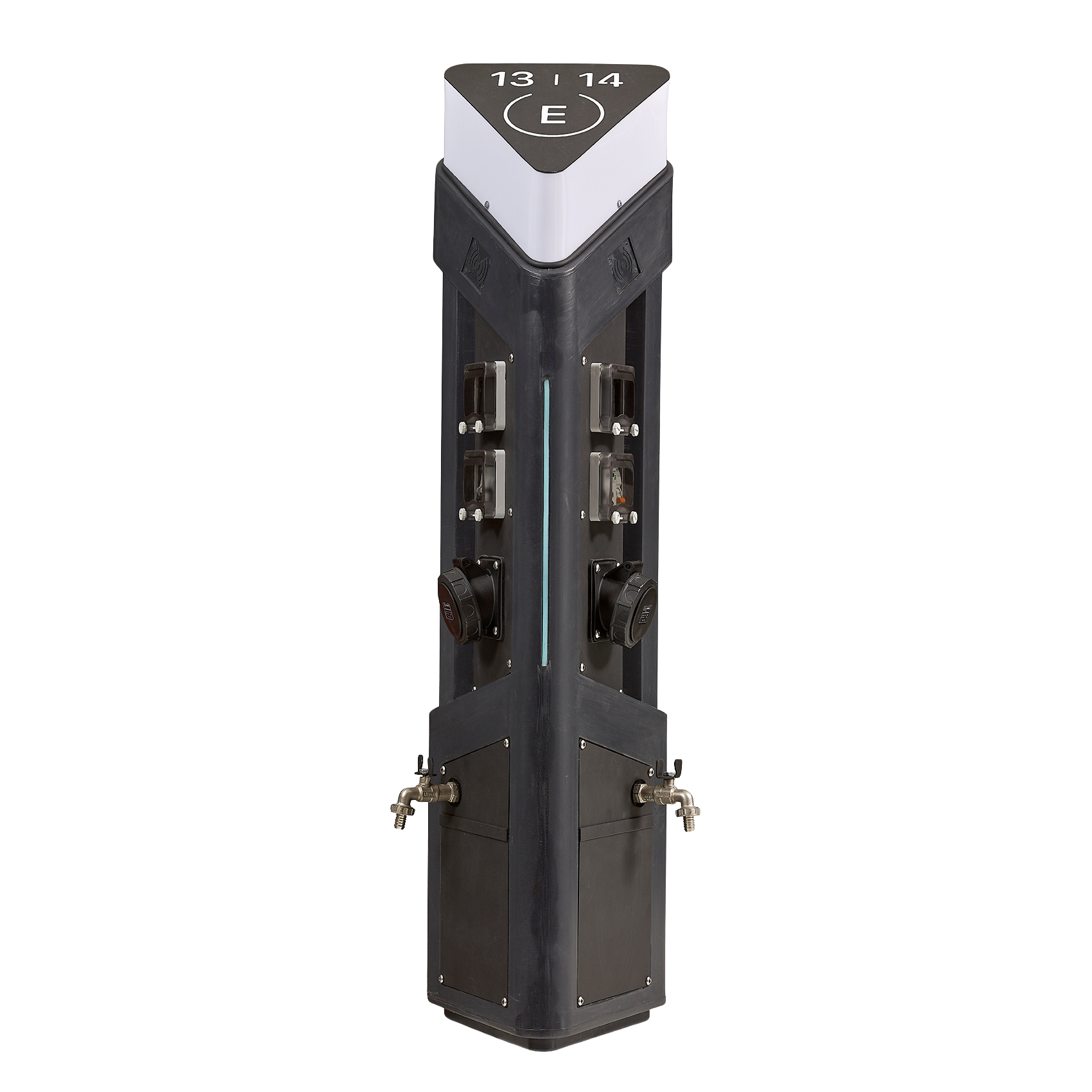

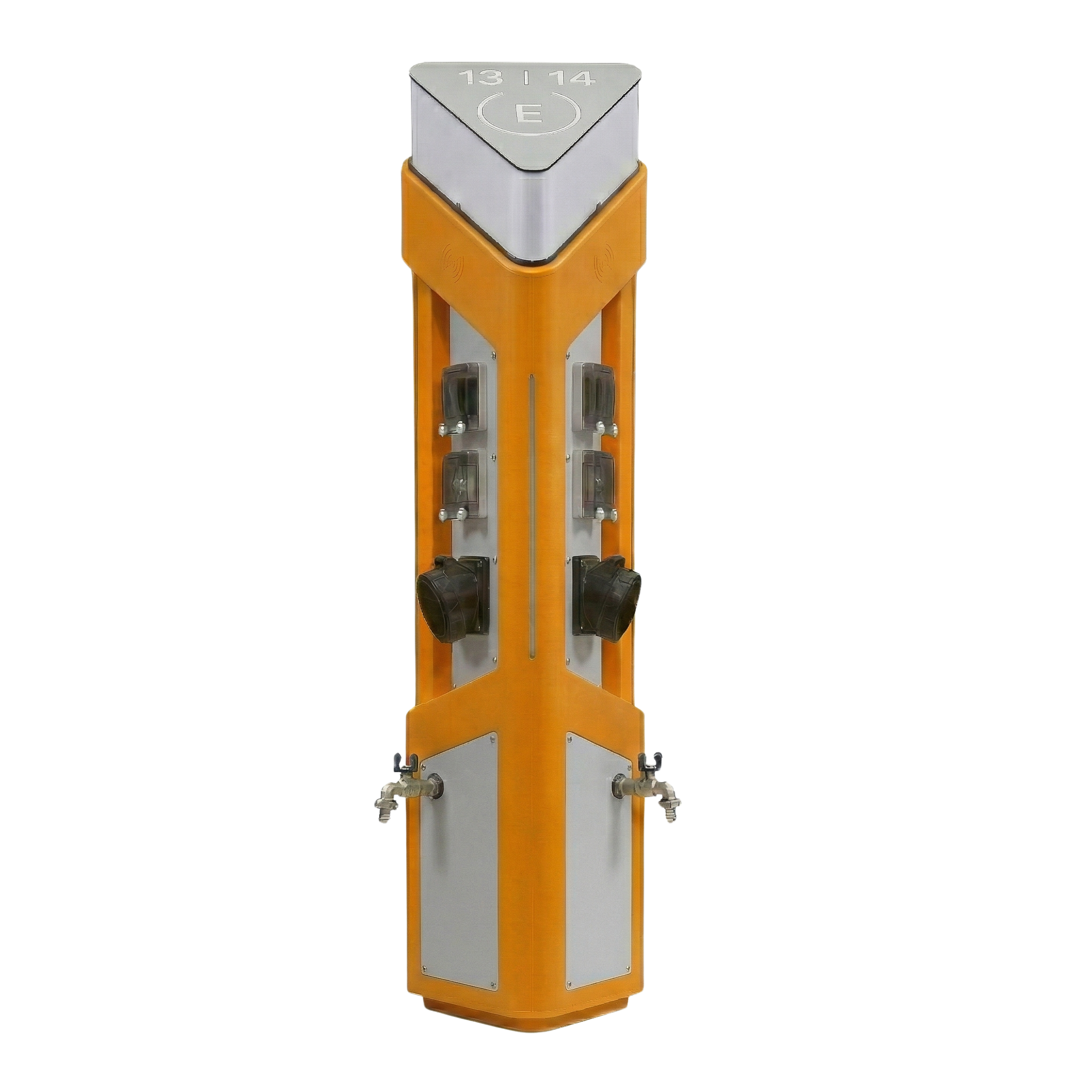

The Meqtec Trima Series marina power pedestal is an ideal power and water distribution solution for marinas with limited space, thanks to its compact dimensions and lightweight structure. With its high-density, UV-protected HDPE body, it offers long-lasting performance even in harsh marine conditions.
Weighing only 14 kg, the Trima Series provides speed and flexibility during installation and maintenance. It prioritizes safety with its IP66-rated housing and IP67-rated sockets. Designed to operate flawlessly between -30°C and +60°C, it ensures reliable, all-season performance.
Smart Lighting, Secure Infrastructure

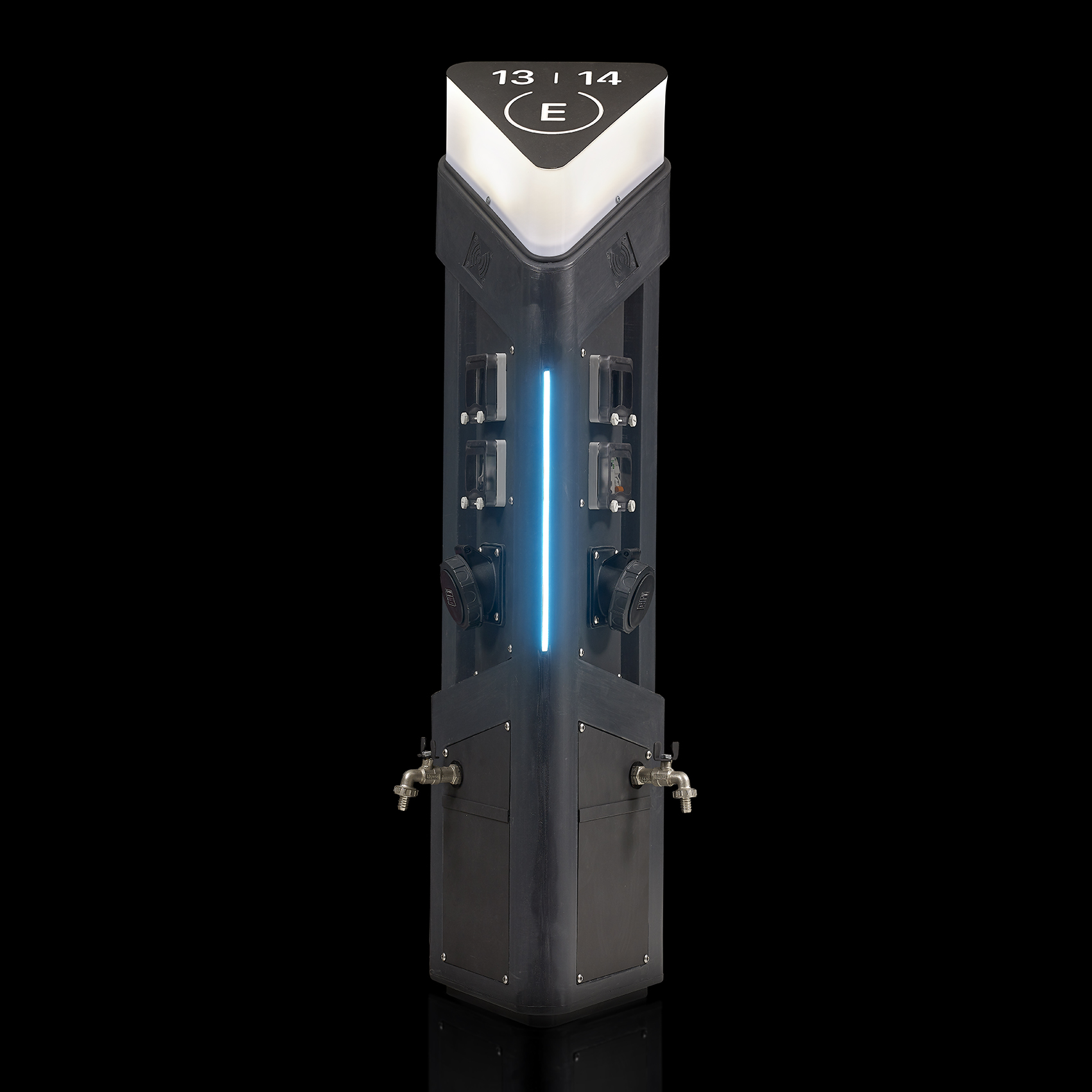

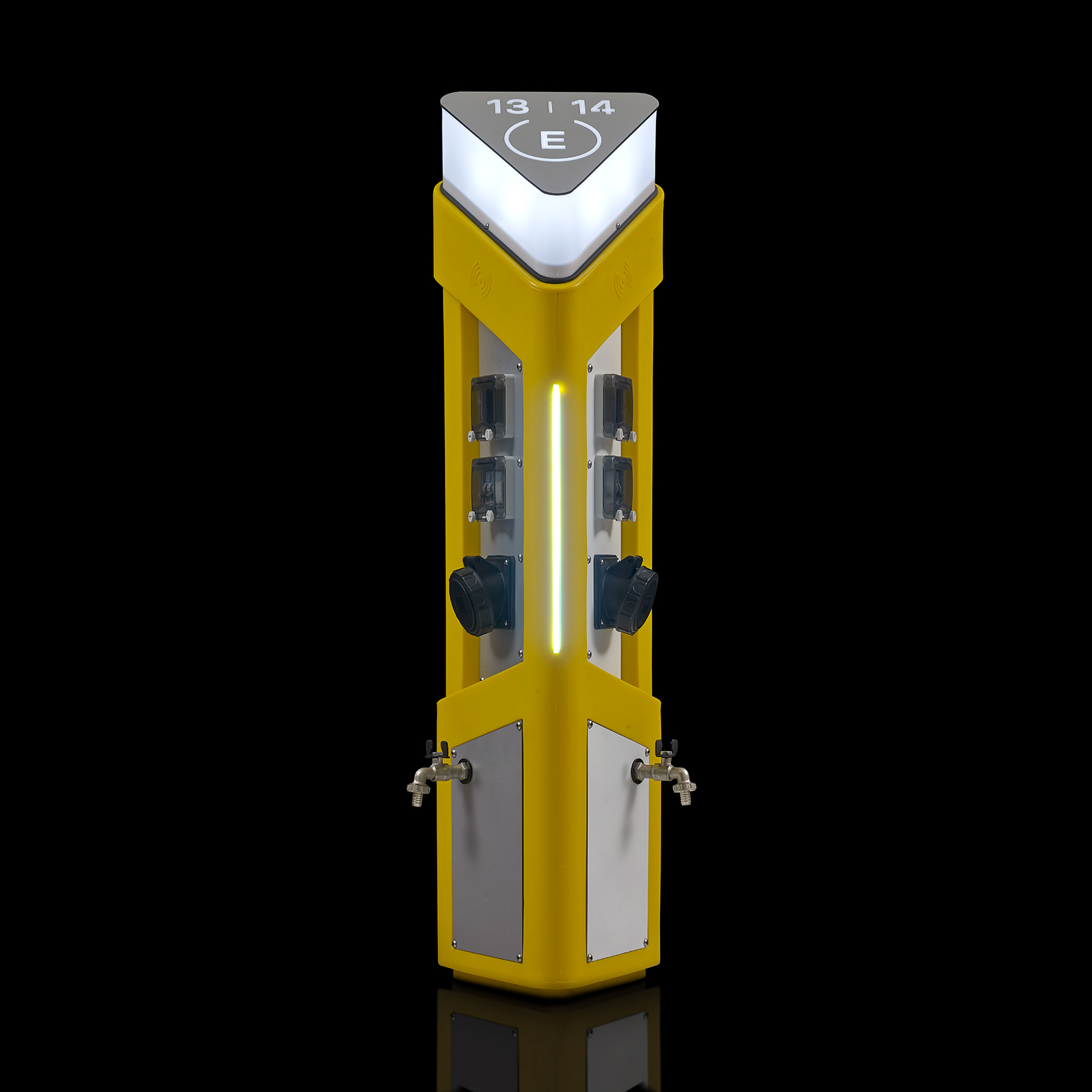

The Trima Series perfectly suits the needs of small to medium-sized marinas with its 1 to 2 electrical and water outlet configuration. With socket options ranging from 16A single-phase to 125A three-phase, it offers flexible solutions for various boat types. Separate overload and short-circuit protection for each outlet provides maximum safety for both connected vessels and the marina infrastructure. Furthermore, the 360° LED lighting with a photocell sensor enhances night visibility, taking the user experience to the next level.
Certified Safety with Meqtec Quality
CE-certified Meqtec Trima Series marina pedestals have successfully passed rigorous tests for impact, IP protection, salt mist, corrosion, solar radiation, and extreme temperatures. With its minimalist design, high technical standards, and energy-efficient structure, the Meqtec Trima Series is an intelligent, secure, and aesthetic solution for modern marinas and yacht harbors.
Body & Material
Material: High-Density Polyethylene (HDPE) / UV Protected
Dimensions (W x D x H): 250 × 300 × 1160 mm
Weight: 14 kg
Durability & Protection
Operating Temperature: -30°C / +60°C
IP Protection Class:
Pedestal: IP66
Sockets: IP67
Impact Resistance: IK10
Electrical & Water Equipment
Electrical Output: 1 – 2 units
Water Output: 1 – 2 units
Socket Options:
16A Single-Phase
64A Three-Phase
Voltage: 115V – 400V / 50–60 Hz
Overload & Short-Circuit Protection: Individual for each output
Water Connection
Faucets: 1/2” valve, quick coupling
Lighting
360° Lighting:
Low-energy consumption LED
Equipped with a photocell sensor
Certification & Standards
CE Certified
Applied Standards:
EN 61439-7
EN 62208
EN 60068-2 (Low / High Temperature)
EN 60529 (IP Protection)
EN 62262 (Impact Resistance)
EN 60068-2-5 (Solar Radiation)
EN 60068-2-52 (Salt Mist / Corrosion)
1-year warranty against manufacturing defects.
