Neca
Tech as you prefer
No need to choose between aesthetics and technology.
The Neca Series offers the ultimate freedom of customization in a fully equipped service pedestal.

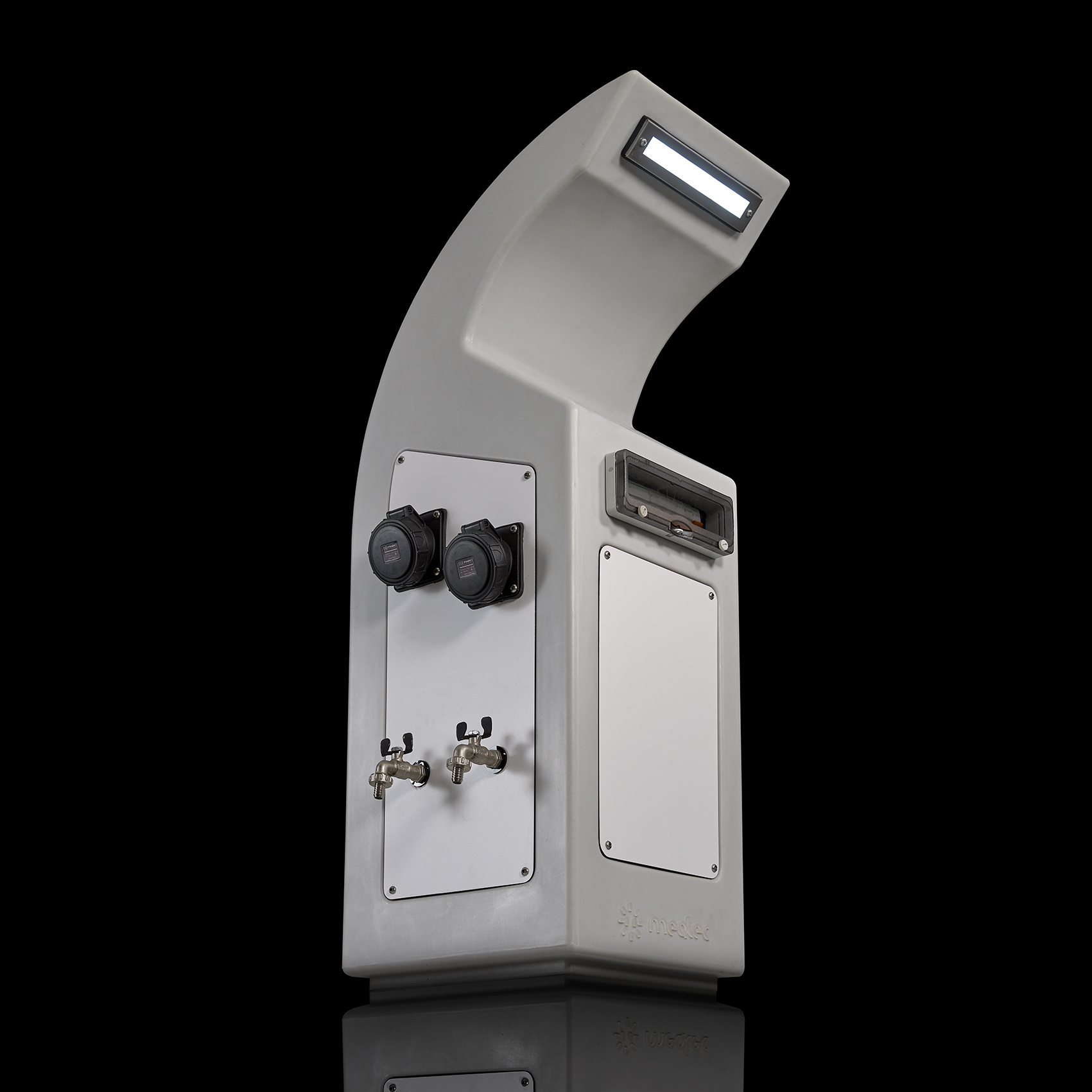

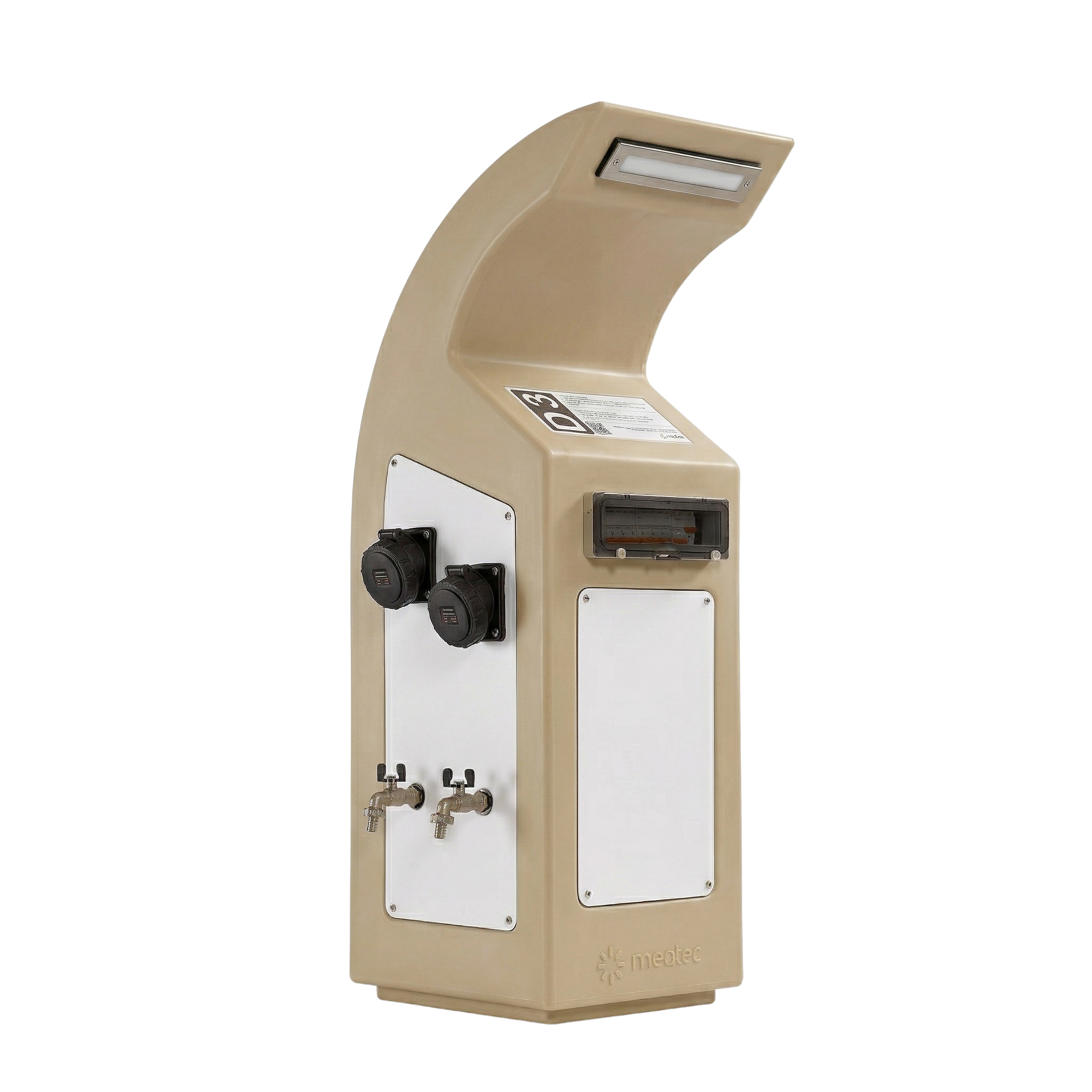

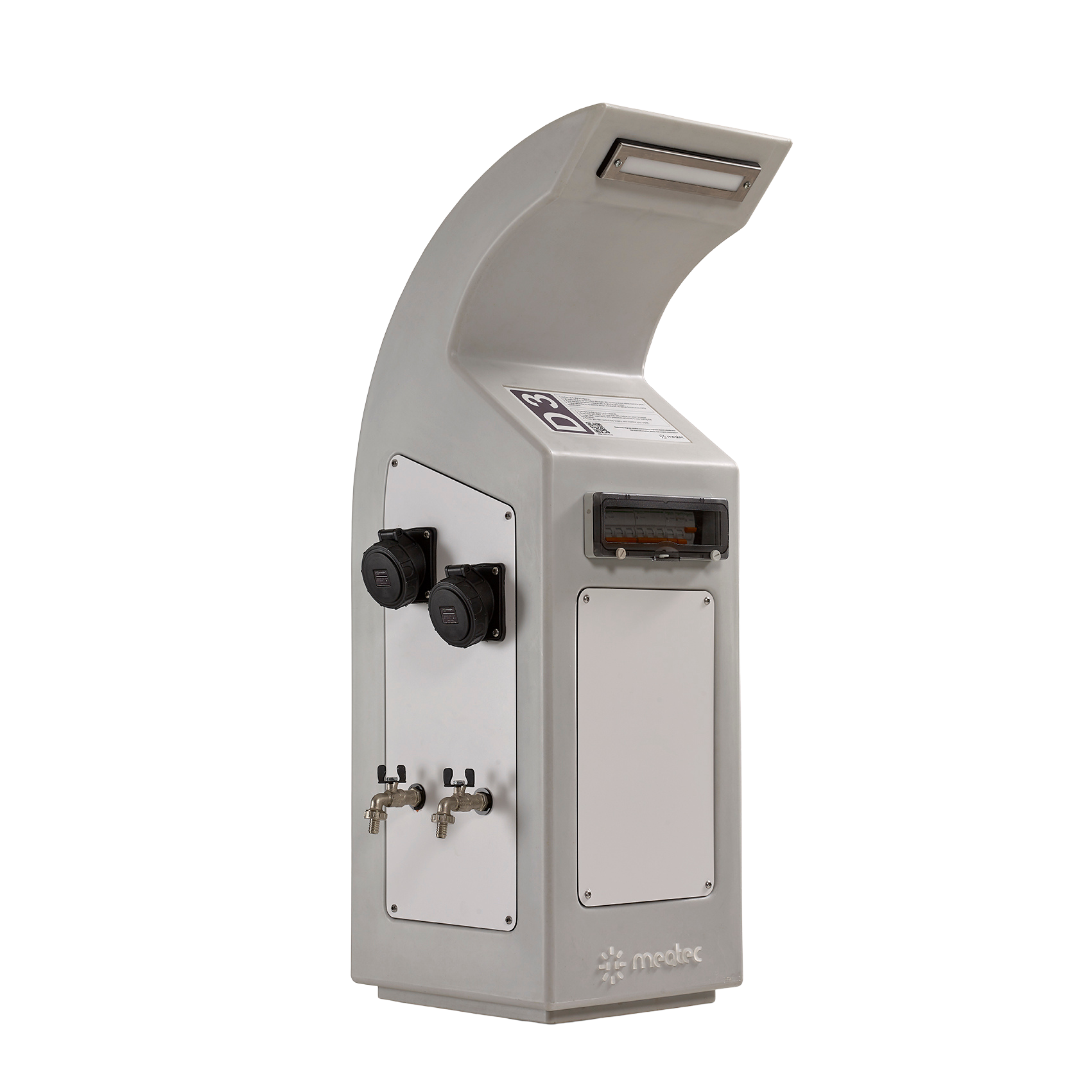

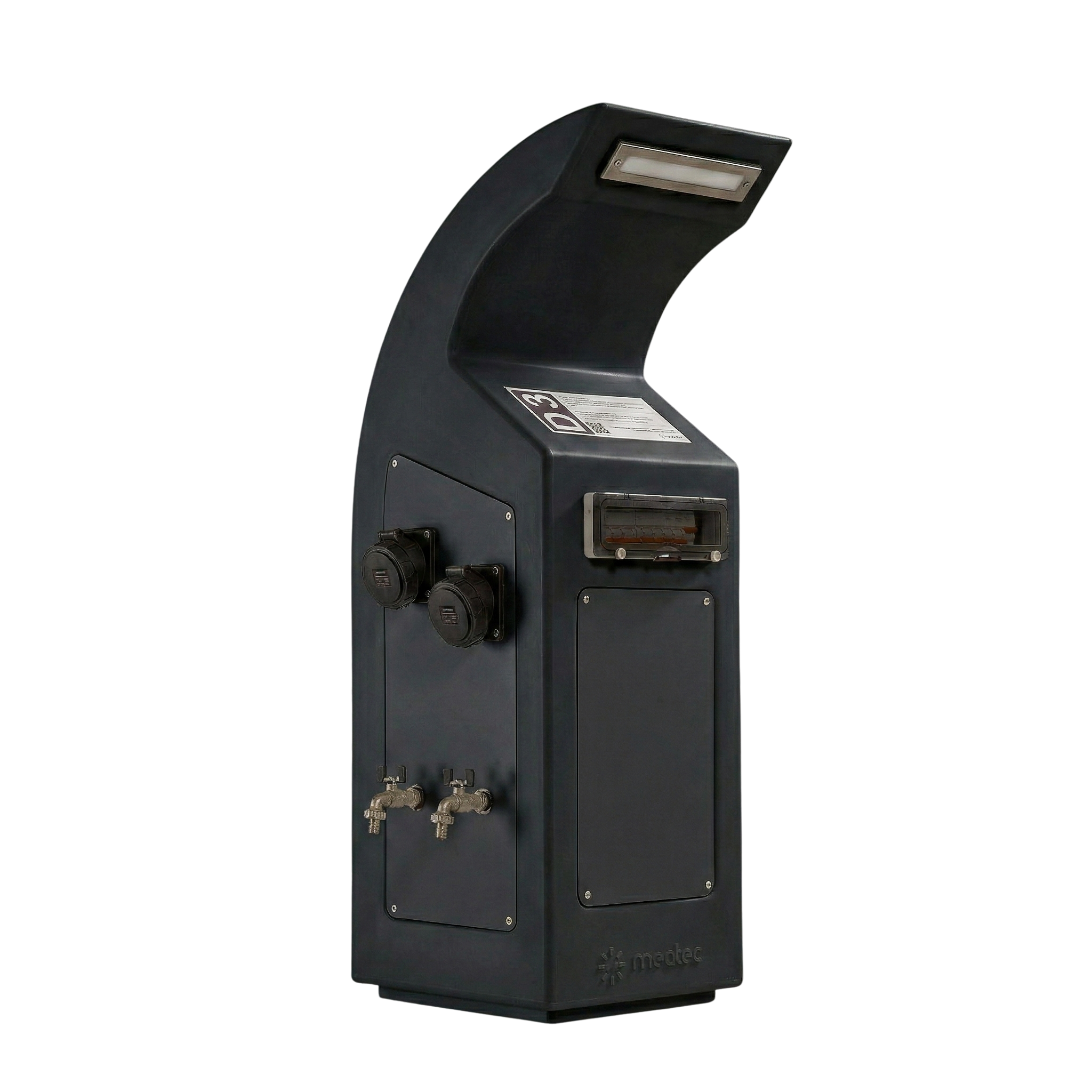

The Meqtec Neca Series marina power pedestal is one of the most comprehensive and flexible service pedestal solutions developed for marinas and yacht harbors. Thanks to its high-density, UV-protected HDPE body, it offers long-lasting performance against sunlight, saltwater, and harsh weather conditions.
With its IP66-rated housing and IP67-rated sockets, the Neca Series provides a level of safety that exceeds maritime standards. Designed to operate flawlessly between -30°C and +60°C, it offers uninterrupted use throughout all four seasons.
The Widest Range of Electrical and Equipment Options
With extensive socket options ranging from 16A single-phase to 250A three-phase, the Neca Series offers an ideal marina power pedestal solution for boats of all sizes, from private yachts to super and mega yachts.
Easily adapting to marina layouts with 1 to 4 electrical and water outlets, this system ensures maximum safety with separate overload and short-circuit protection for each outlet.
Low-energy consumption LED lighting with a photocell sensor increases night-time usability while optimizing energy efficiency. Meanwhile, the 1/2” quick-connect water valves provide a practical and comfortable user experience.
Certified Safety with Meqtec Quality
CE-certified Meqtec Neca Series marina pedestals have successfully passed rigorous tests for impact, IP protection, salt mist, corrosion, solar radiation, and low/high temperatures.
With its modern design, high current capacity, and customizable structure, the Meqtec Neca Series is a professional solution that elevates the infrastructural power and prestige of your marina.
Body & Material
Material: High-Density Polyethylene (HDPE) / UV Protected
Dimensions (W x D x H): 395 × 350 × 1200 mm
Weight: 20 kg
Durability & Protection
Operating Temperature: -30°C / +60°C
IP Protection Class:
Pedestal: IP66
Sockets: IP67
Impact Resistance: IK10
Electrical & Water Equipment
Electrical Output: 1 – 4 units
Water Output: 1 – 4 units
Socket Options:
16A Single-Phase
250A Three-Phase
Voltage: 115V – 400V / 50–60 Hz
Overload & Short-Circuit Protection: Individual for each output
Water Connection
Faucets: 1/2” valve, quick coupling
Lighting
LED Lighting:
Low-energy consumption
Equipped with a photocell sensor
Certification & Standards
CE Certified
Applied Standards:
EN 61439-7
EN 62208
EN 60068-2 (Low / High Temperature)
EN 60529 (IP Protection)
EN 62262 (Impact Resistance)
EN 60068-2-5 (Solar Radiation)
EN 60068-2-52 (Salt Mist / Corrosion)
1-year warranty against manufacturing defects.
